YBX3 SERIES HIGH EFFICIENCYTHREE PHASE ASYNCHRONOUS MOTOR

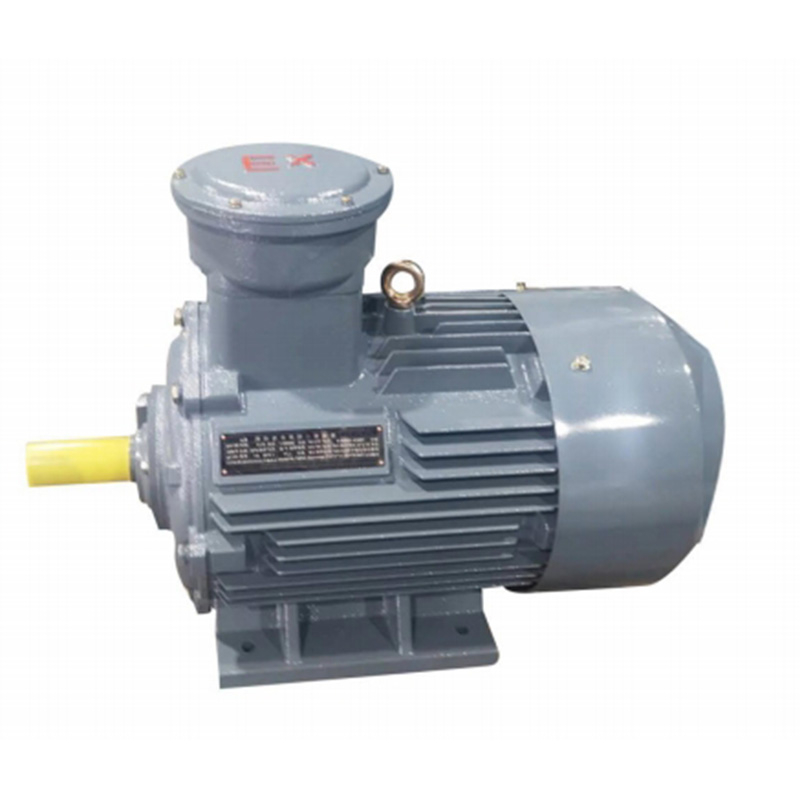

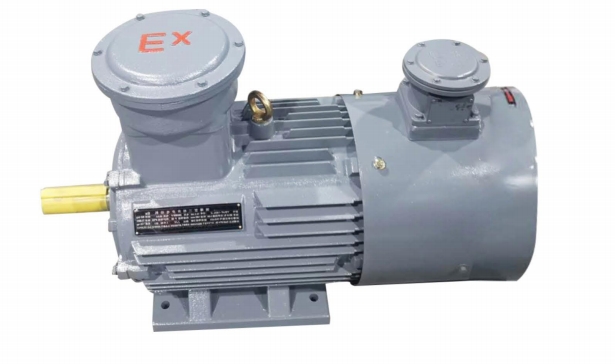

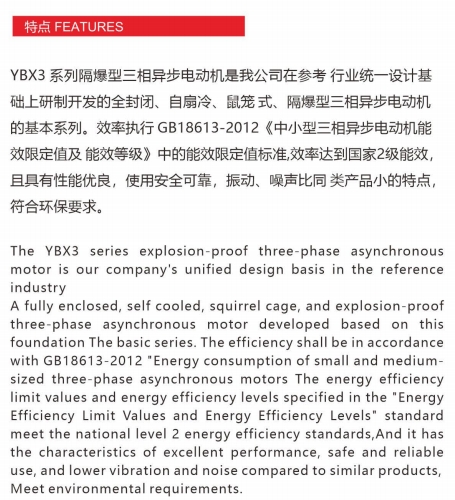

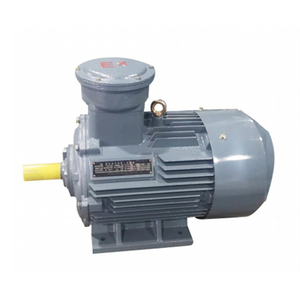

The YBX3 series explosion-proof three-phase asynchronous
motor is our company's unified design basis in the reference
industry
A fully enclosed,self cooled,squirrel cage,and explosion-proof
three-phase asynchronous motor developed based on this
foundation The basic series.The efficiency shall be in accordance
with GB18613-2012"Energy consumption of small and medium-
sized three-phase asynchronous motors The energy efficiency
limit values and energy efficiency levels specified in the "Energy
Efficiency Limit Values and Energy Efficiency Levels" standard
meet the national level 2 energy efficiency standards,And it has
the characteristics of excellent performance,safe and reliable
use, and lower vibration and noise compared to similar products,
Meet environmental requirements.

Quantity:

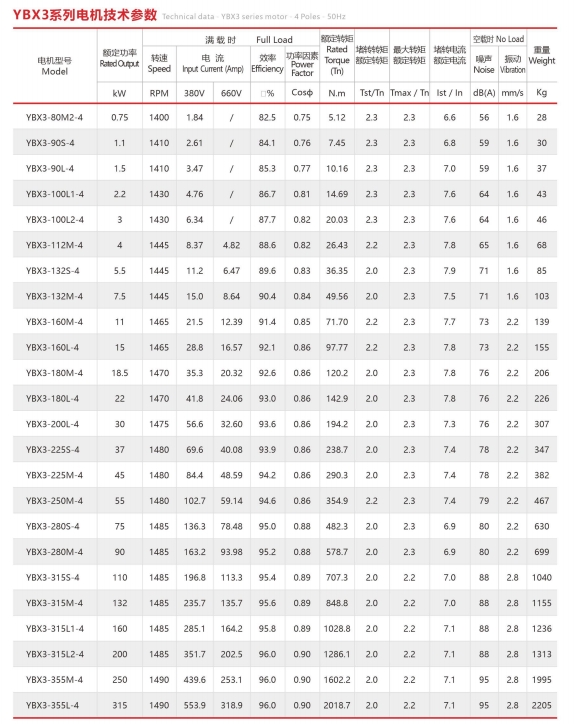

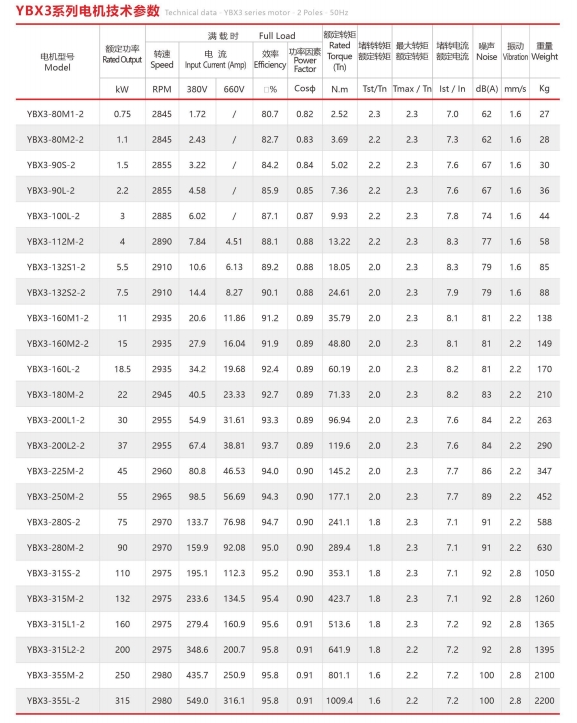

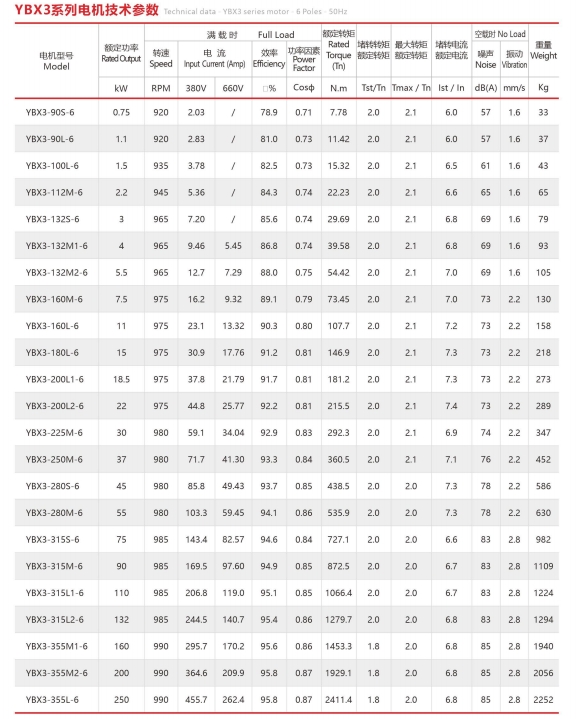

Size:	YBX3-80M1-2 YBX3-80MM2-2 YBX3-90S-2 YBX3-90L-2 YBX3-100L-2 YBX3-112M-2 YBX3-132S1-2 YBX3-132S2-2 YBX3-160M1-2 YBX3-160MM2-2 YBX3-160L-2 YBX3-180MM-2 YBX3-200L1-2 YBX3-200L2-2 YBX3-225M-2 YBX3-250MM-2 YBX3-2805-2 YBX3-280MM-2 YBX3-315S-2 YBX3-315M-2 YBX3-315L1-2 YBX3-315L2-2 YBX3-355M-2 YBX3-355L-2 YBX3-80MM2-4 YBX3-90S-4 YBX3-90L-4 YBX3-100L1-4 YBX3-100L2-4 YBX3-112M-4 YBX3-132S-4 YBX3-132M-4 YBX3-160M-4 YBX3-160L4 YBX3-180M-4 YBX3-180L-4 YBX3-200L-4 YB×3-225S-4 YBX3-225M-4 YBX3-250M-4 YBX3-2805-4 YBX3-280M-4 YBX3-315S-4 YBX3-315M-4 YBX3-315L1-4 YBX3-315L2-4 YBX3-355M-4 YBX3-355L-4 YBX3-905-6 YBX3-90L-6 YBX3-100L-6 YBX3-112M-6 YBX3-132S-6 YBX3-132M1-6 YBX3-132M2-6 YBX3-160M-6 YBX3-160L-6 YBX3-180L-6 YBX3-200L1-6 YBX3-200L2-6 YBX3-225M-6 YBX3-250M-6 YBX3-2805-6 YBX3-280M-6 YBX3-315S-6 YBX3-315M-6 YBX3-315L1-6 YBX3-315L2-6 YBX3-355M1-6 YBX3-355M2-6 YBX3-355L-6
